This In-Vessel Composter is 10′ diameter x 60′ long is composting dairy manure.
In-Vessel Composter: The BioReactor
The XACT BioReactors are large scale in-vessel composters that convert huge volumes of solid organic waste into compost in as little as 3 to 7 days. The XACT BioReactor is available in 5’ to 10’ diameters and in lengths from 10’ to 60’. Although it is a simple design, it is built to heavy-duty standards in order to withstand the rigors of turning tons and tons of material 24 hours per day, 365 days per year.
For example, a 10’ x 60’ long BioReactor is turning 75 tons of waste up to 240 times per day!
- Carbon Steel Walls (up to 5/8” thick)
- Solid Steel Wheels
- Heavy Duty Mounting Frames
- Interior Liner Rings
- Negative Ventilation System for Process and Odor Control
- Foam Insulation for 24/7/365 Temperature Control
- Automatic Discharge Door
The BioReactor in-vessel composter rotates at about 5 to 10 rph, and is driven by a variable speed drive unit(s) using a surprisingly low hp motor. The size of motor depends on the size of the vessel but ranges from 5 to 10 hp. Note that the ends of the BioReactor are fixed and only the cylinder rotates.

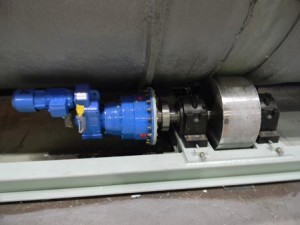

4 Friction Drives Rotate the BioReactor
There are no temperamental interior plungers , fins or paddles. The organic material simply moves along the vessel as it decomposes and becomes lighter and fluffier.
- Requires no supplementary heat
- Offers tremendous throughput
- Saves labor
- Requires minimal land
Soft Touch Screen Control Panel (Optional)
- Optimizes processing factors
- Controls ventilation, drum rotation, temperatures
- Temperature Tracking
In-Vessel Composter Site Layout
This 3 in-vessel composter system shows a feed stock prep building with a grinder and a mixer, and a 5-bay
In-Vessel Composter Uses BioFilters For Odor Control
compost storage building. In addition, there is a biofilter installed in the ground (the grey area along the length of the lower drum) which is cleaning the exhausted air.
One of the great advantages of the XACT in-vessel composter technology is that as your operational needs increase, additional drums can be easily added–increasing your capacity with no down time. This is just one of the many possible layouts that could be designed for you!
Auxiliary Equipment Available
- Mixers for blending
- Grinders for particle size reduction
- Infeed and outfeed screw conveyors
- Distribution conveyor with automatic spreader
Check out these Composting Installations for food waste, horse manure, and dairy manure: http://xactsystemscomposting.com/installation/
